| Model |
Function |
| 49SD-485 |
RS485 (series connection, Plug-in) |
| 49SD-PA |
Profibus-PA(series connection, Plug-in) |
| 49SD-TP |
Telephone cable (series connection, Plug-in) |
| 49SD-GE |
Ethernet(series connection) |
|
|
| Products |

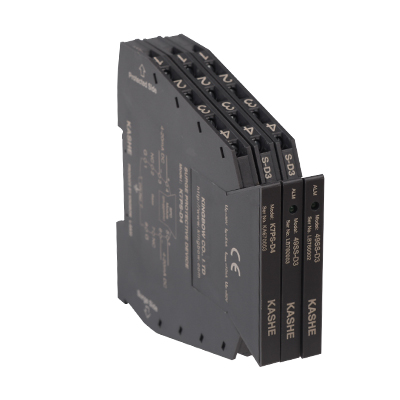

49S Series |
Type |
For Data & Communications line use:
RS-485/422, RS232
Telephone line
Analog video signals
20MHz narrowband net
10-1000MHz radio
|
| Power supply |
See detail spec. data sheet |
| Discharge current capacity |
10kA |
| Remains Voltage |
See detail spec. data sheet |
| Response time |
Between lines:
¡Ü
1ns
Line to ground:
¡Ü
10ns
See detail spec. data sheet |
| Leakage Current |
See detail spec. data sheet |
| Construction |
Connected in series |
| Housing material |
Flame-resistant resin |
| Operating data |
Temperature:-40- +85
¡æ
Humidity: 5- 95%RH |
| Display |
- |
| Resistance connect to ground |
¡Ü 10¦¸ |
| Connection |
M3 screw terminals |
| Approvals |
CE
UL |
| Mounting |
35mm DIN rail mounting |
| Dimensions |
W7
×
H106
×
D101mm |
| Weight |
130g |
|
|
